Explosion-proof integrated temperature and vibration sensor

Explosion-proof integrated temperature and vibration sensor

Introduction Explosion-proof integrated temperature and vibration sensor can measure the temperature and vibration (displacement, velocity, acceleration) of the equipment, and can simultaneously monitor the XYZ three-axis vibration value and surface temperature of the equipment Specification Sensitivity 20mv/mm/s±0.3% ~ 50mv/mm/s±0.3% Frequency response 10～1000Hz Natural frequency 10Hz Range 0～20 mm/s，0-30mm/s,0-50mm/s…… …

0086-551-00000000

Product Introduction

Introduction

Explosion-proof integrated temperature and vibration sensor can measure the temperature and vibration (displacement, velocity, acceleration) of the equipment, and can simultaneously monitor the XYZ three-axis vibration value and surface temperature of the equipment

The explosion-proof temperature vibration integrated transmitter(图1)

Specification

Sensitivity	20mv/mm/s±0.3% ~ 50mv/mm/s±0.3%

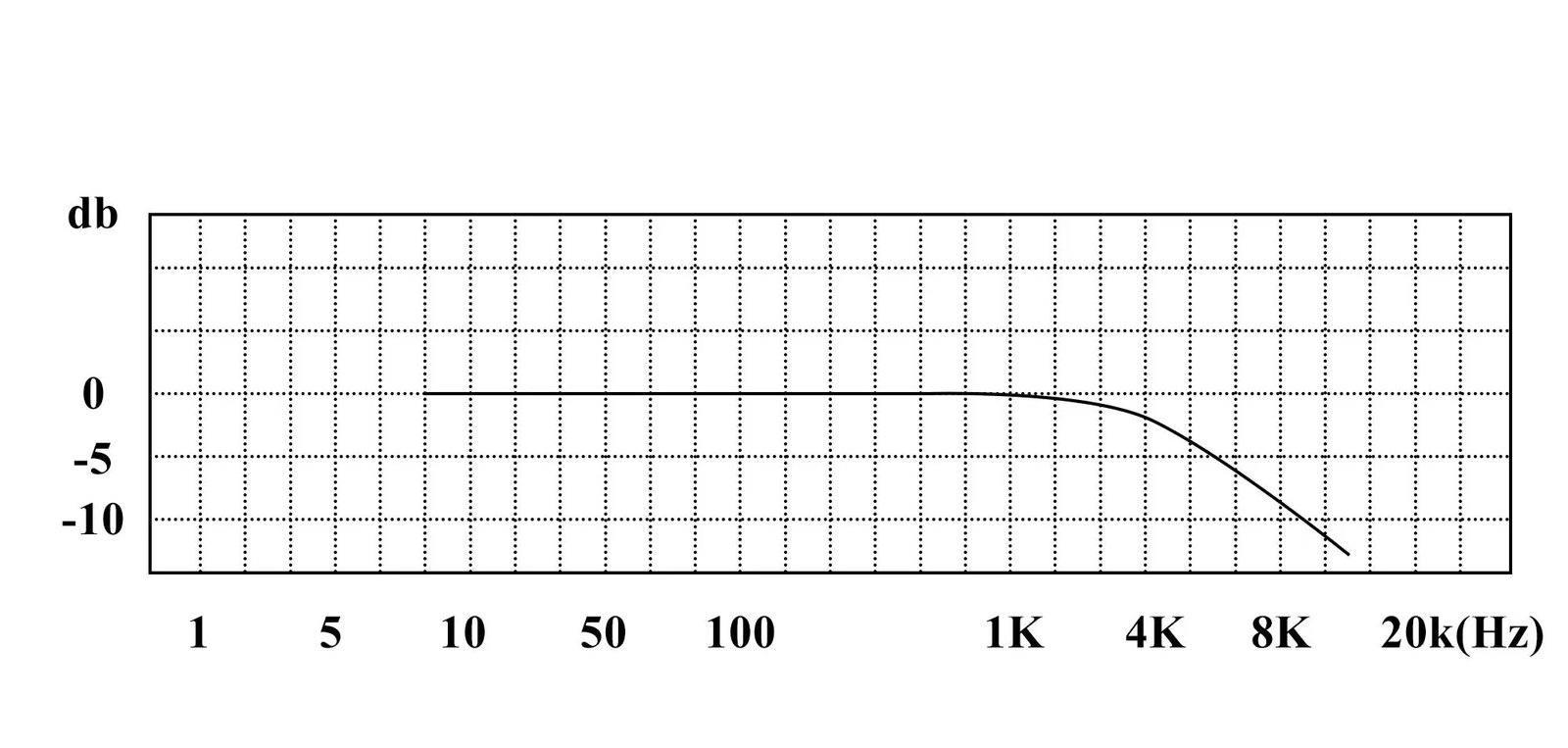

Frequency response	10～1000Hz
Natural frequency	10Hz
Range	0～20 mm/s，0-30mm/s,0-50mm/s…… / 0～200um,0-300um,0-500um……
Maximum acceleration	100g
Output	4~20mA / RS485
Temperature	200℃

size

The explosion-proof integrated vibration transmitter(图2)

install

The explosion-proof integrated vibration transmitter(图3)

Explosion-proof motor vibration sensor

Temperature vibration integrated transmitter
